For engineers and procurement specialists seeking efficient power conversion solutions, knowing what a planar transformer offers over conventional designs is key to optimizing modern electronics. Mentech, a seasoned manufacturer of custom magnetics, combines technical expertise with advanced production capabilities to deliver high-performance planar transformer solutions tailored to demanding B2B applications. Their commitment to quality makes them a reliable partner across telecommunications, industrial power, and automotive sectors.
What Exactly Is a Planar Transformer?

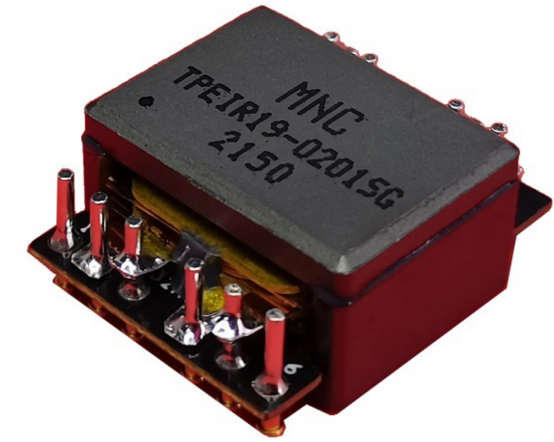

A transformer transfers electric power from one circuit to another, either stepping voltage up or down as needed. A planar transformer distinguishes itself through a flat, low-profile construction. Instead of traditional wire windings, it uses flat copper sheets or etched foil windings arranged in a compact, planar core structure. This design drastically reduces height while improving thermal management and power density. Mentech’s planar transformer models, such as the TPEIR19-0201SG, exemplify these benefits with dimensions of just 21.6*24.65*10.5mm, a 150W power rating, and a precise 4:5:5:1:1 turn ratio.
Key Advantages of the Planar Transformer Design
The planar transformer delivers multiple performance benefits. Its flat winding structure minimizes AC resistance and leakage inductance, enabling higher operating frequencies and greater efficiency. The broad surface area also enhances heat dissipation, reducing the need for bulky cooling solutions. Additionally, the planar transformer supports automated SMT assembly, lowering manufacturing costs for volume production. These features make the planar transformer ideal for space-constrained applications like DC-DC converters, power supplies, and onboard chargers.
Why Mentech Excels in Planar Transformer Solutions
Mentech is not just a component supplier; they are a dedicated partner in custom magnetics. With years of experience, their engineering team works closely with clients to specify planar transformer parameters—inductance, turn ratio, isolation, and thermal performance—precisely matching application requirements. From prototyping to mass production, Mentech ensures consistent quality and reliability.
Final Perspective for Power System Buyers
Understanding the planar transformer is the first step toward building more compact, efficient, and reliable power systems. Mentech’s proven expertise in planar transformer design and manufacturing offers B2B buyers a low-risk pathway to advanced power solutions. Reach out to Mentech to explore how their planar transformer portfolio can elevate your next project.
